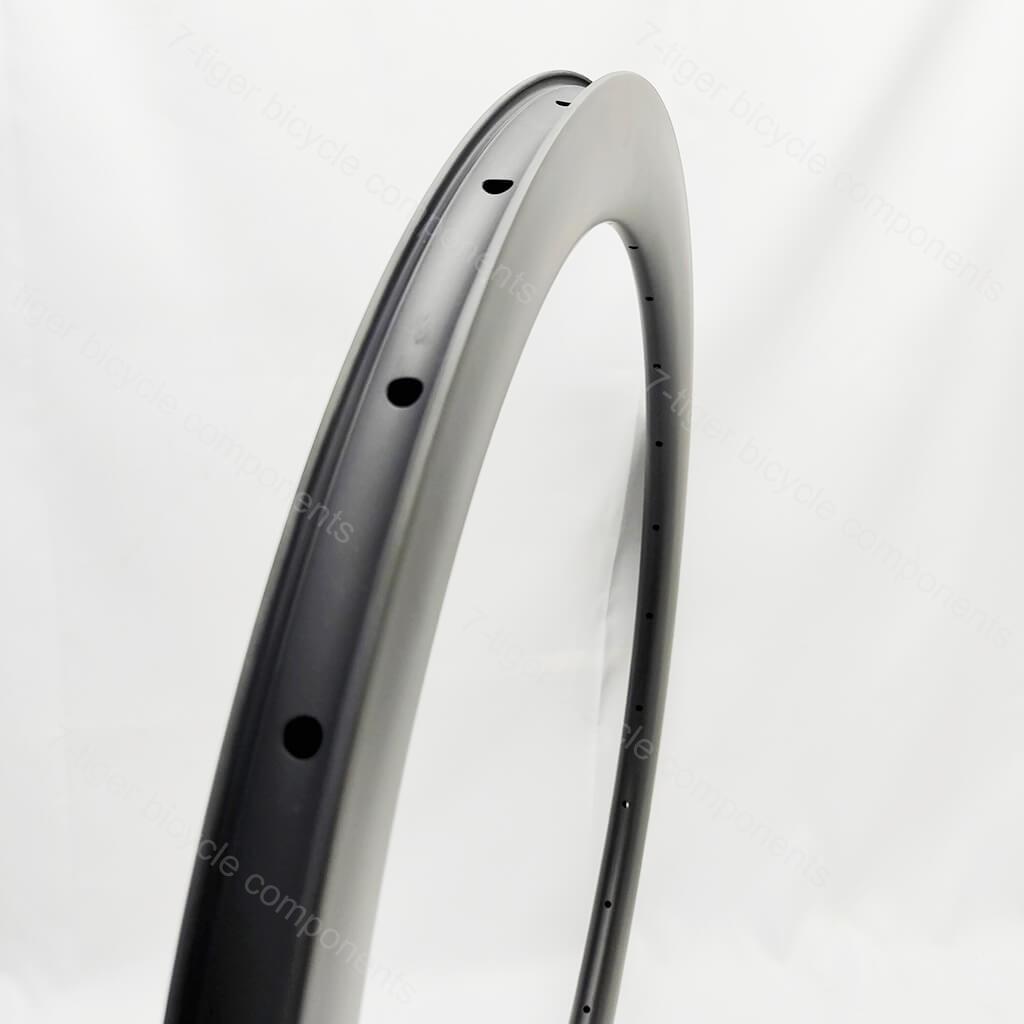

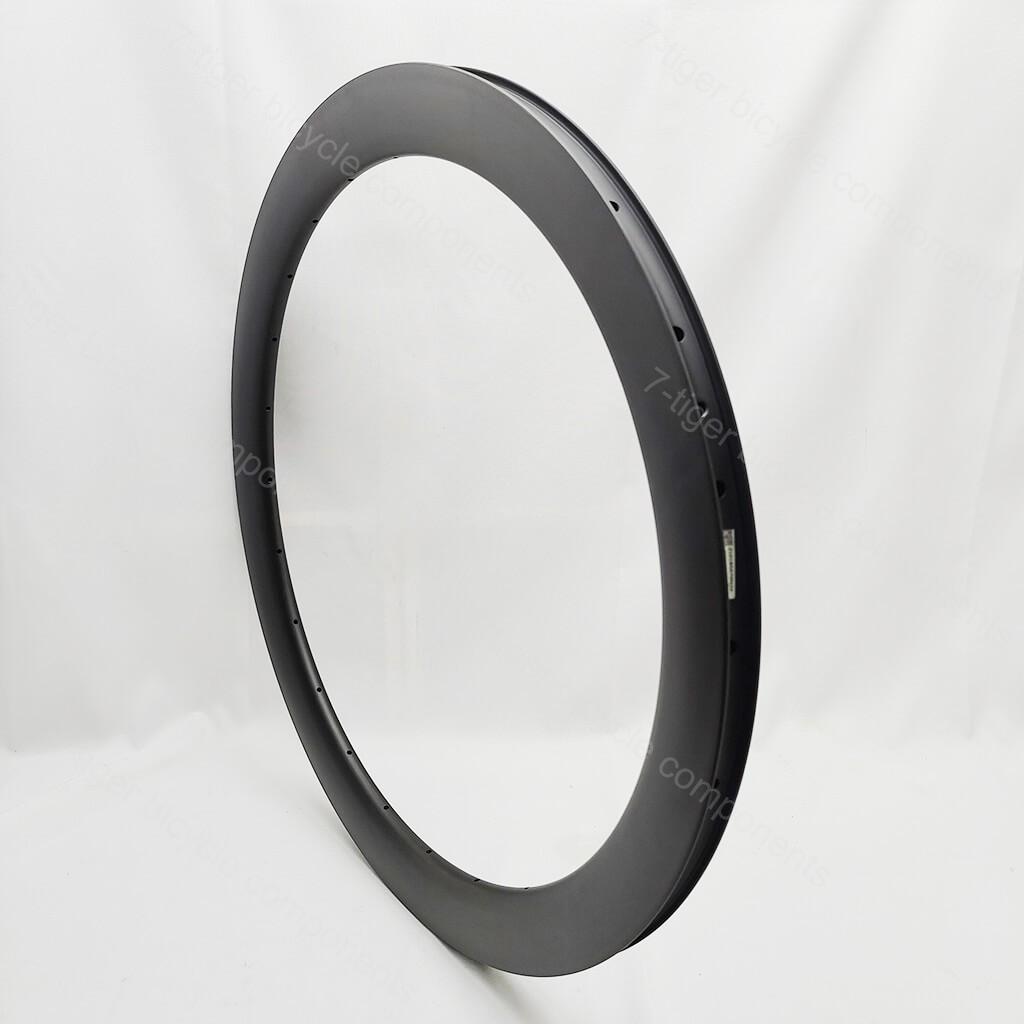

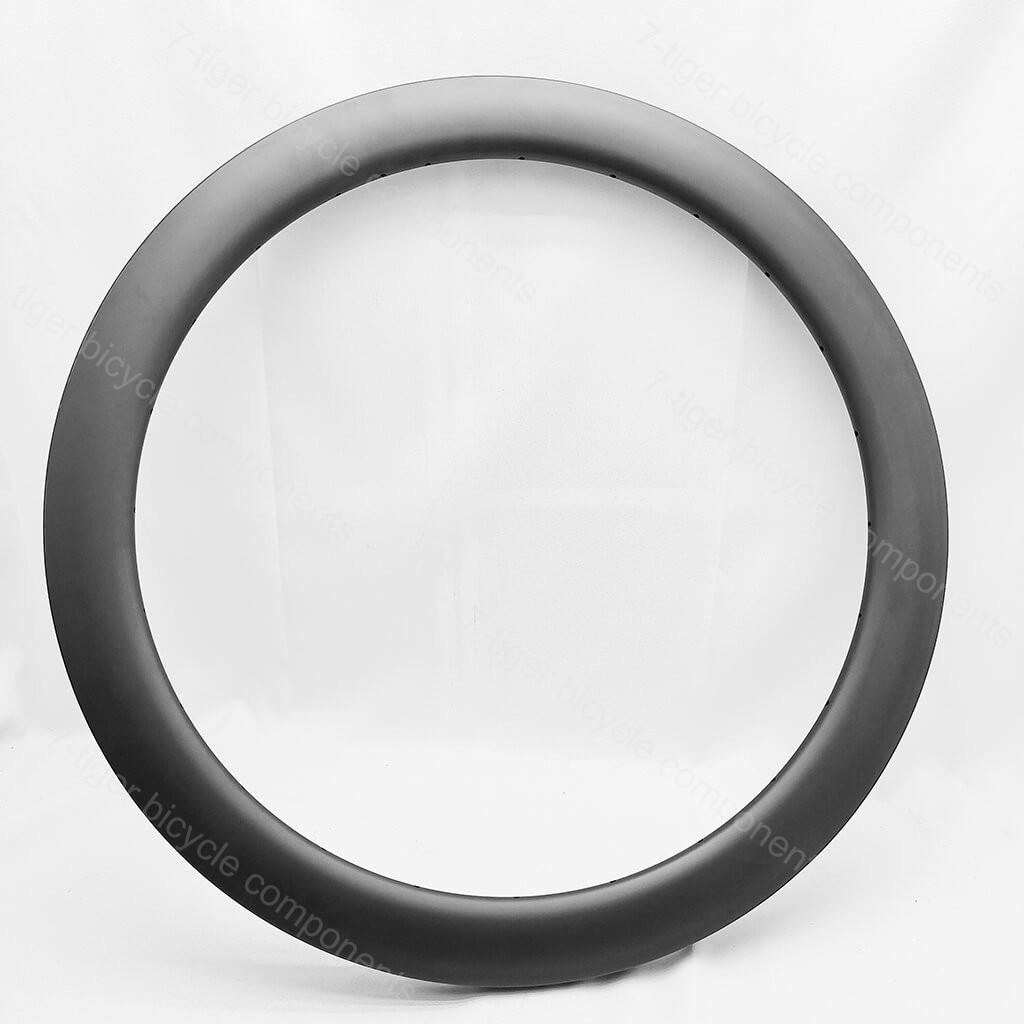

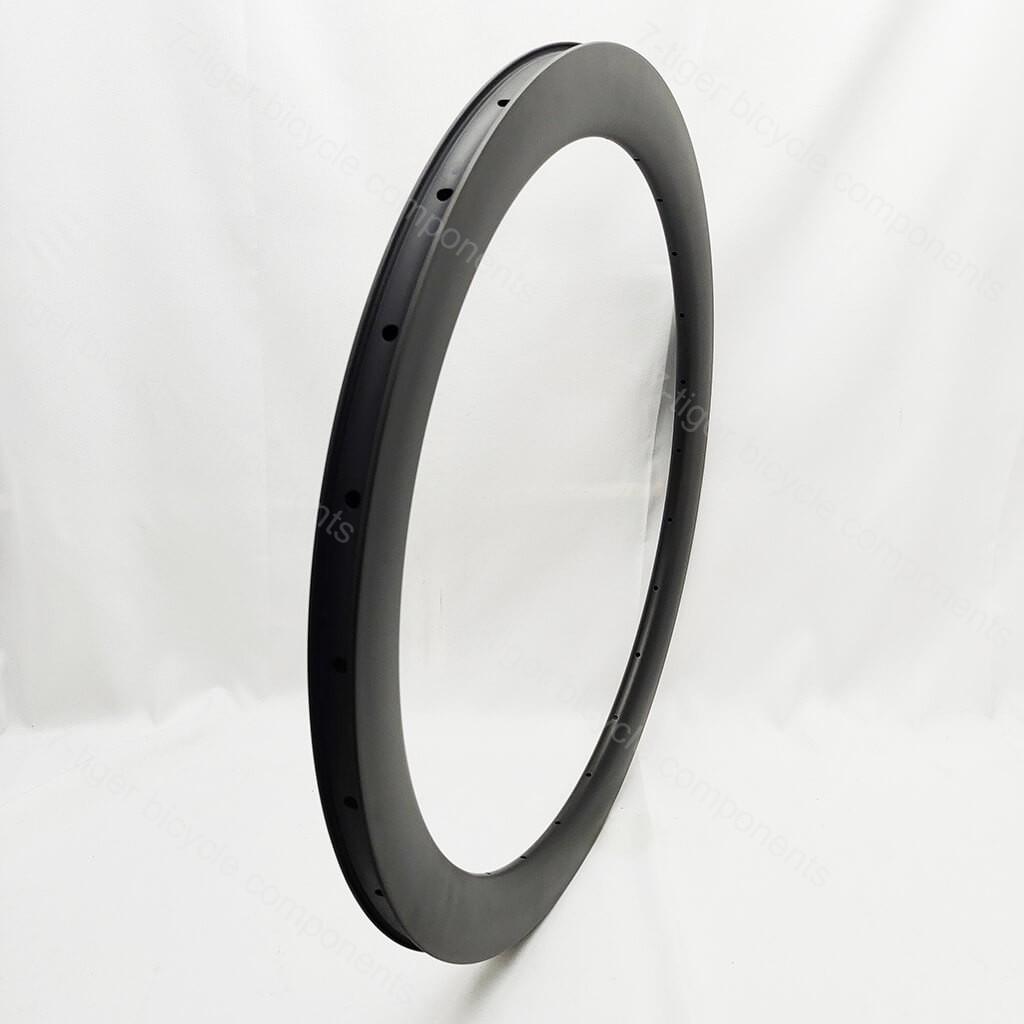

TRU55S carbon road bicyle tubeless rim 55mm deep 25mm wide

Model: TRU55S
Tire bed: Clincher 25mm wide, Tubeless ready
Rim weight:460g+/-15gr
Rim out wide: 25mm
Rim depth: 55mm
Brake: Disc brake and v-brake

EMAIL

TRU55S 700c 55mm carbon road bike clincher rims 25mm wide

55 DEEP | 25 WIDE EXT | 460G | CLINCHER TUBELESS READY


Item No.: TRF55S

Size: 700C x 25mm

Material: Full Carbon Toray T700 & T800

Type: Clincher, Tubeless ready

Weight: Standard 520±15g, Flyweight 460±15g

ERD: 530mm

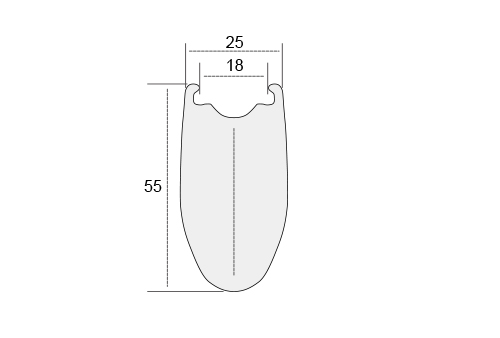

Outer Width: 25mm

Inner Width: 18mm

Depth:  55mm

Drill: 16-18-20-21-24-28-32 holes

Brake System: Disc brake or rim brake

Max Spoke Tension:  140kgf

Max Tire Pressure: 110psi/ 7.58bar

Max Weight Limit:  110kg

Applicable Bicycle: Road / CX

Appearance: UD/3K/12K/X-weave

Finishing: Matte/Glossy

Standard: En Standard

Assembly Hole Dia: 8.5mm

Spoke Hole Dia: 4.5mm

Valve Hole Dia: 6.5mm

Roundess:<0.3mm
