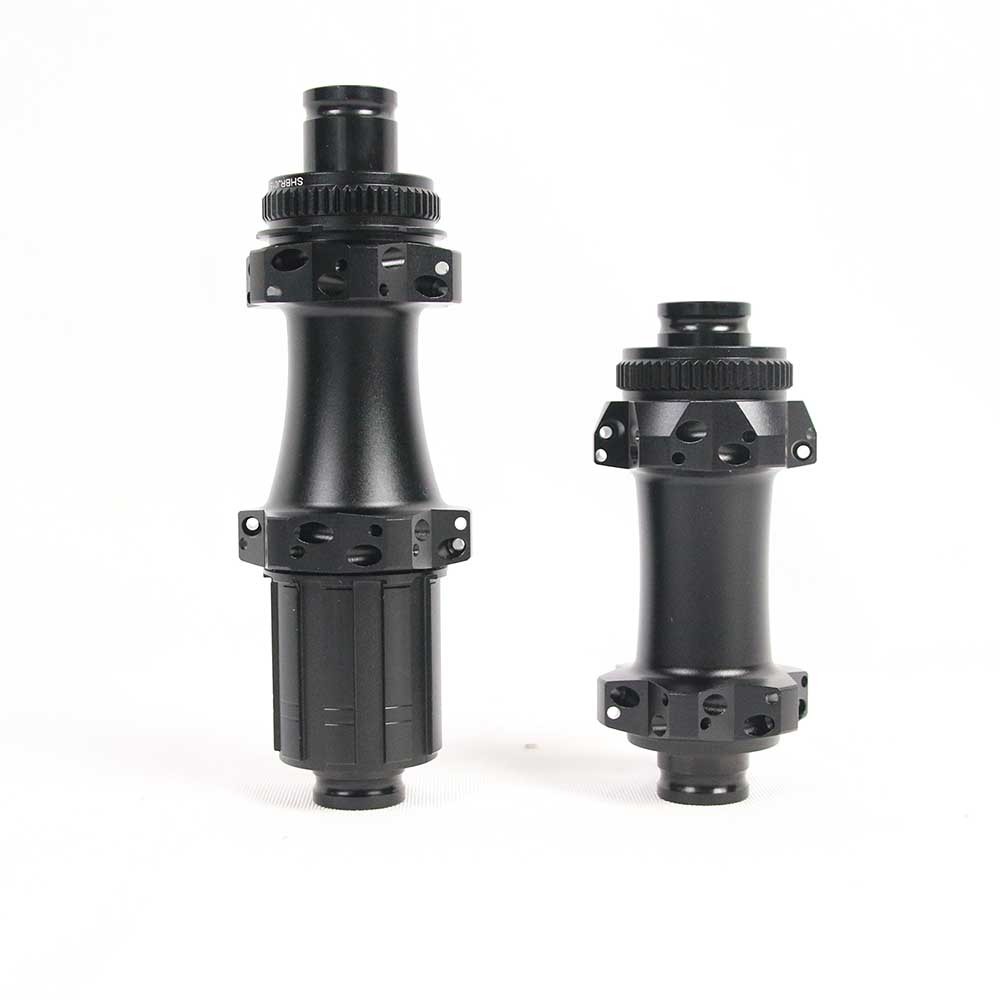

Center Hubs Road Bike Hub Disc Brake SR315

EMAIL

Simple Maintenance

Our hubs are also known for the notool technology. We also found a way to further improve this system and make maintenance even simpler, by a small change of the endcaps.


Freehub Body Conversion

Simplified due to easier disassembly.


Less Weight

Not only the reliability improved. The fusion of ratchet and threaded ring reduces the number of single parts of the system what offers an important advantage.


Less Wear

A single cylindrical spring ensures faster full engagement and thus increases reliability.

Superior Reliability

The full engagement of the ratchets creates a large contact surface and therefore low surface pressure that leads to superior reliability.


Increased Bearing Lifetime

The integration of the bearing into the threaded ring allows the bearing distance to be maximized. The increased distance further supports the axis, which results in less deflection of the axle and thus protects the bearings and increases their lifetime.

pecifications


Front hub

Weight: 103g

Area of use: Road

Pitch circle left: 22.6mm

Pitch circle right: 29.4mm

Flange distance left: 40mm

Flange distance right: 39mm

Spoke bore diameter: 2.5mm


Rear hub

Weight: 199g

Area of use: Road

Pitch circle left: 37.2mm

Pitch circle right: 44.1mm

Flange distance left: 33.4mm

Flange distance right: 15.7mm

Spoke bore diameter: 2.5mm
