Rim brake road carbon wheels
SR030 Straight pull hub
Basalt brake edge on the rim
Pillar 1420 spoke in the weight
2:1 asymmetrical design

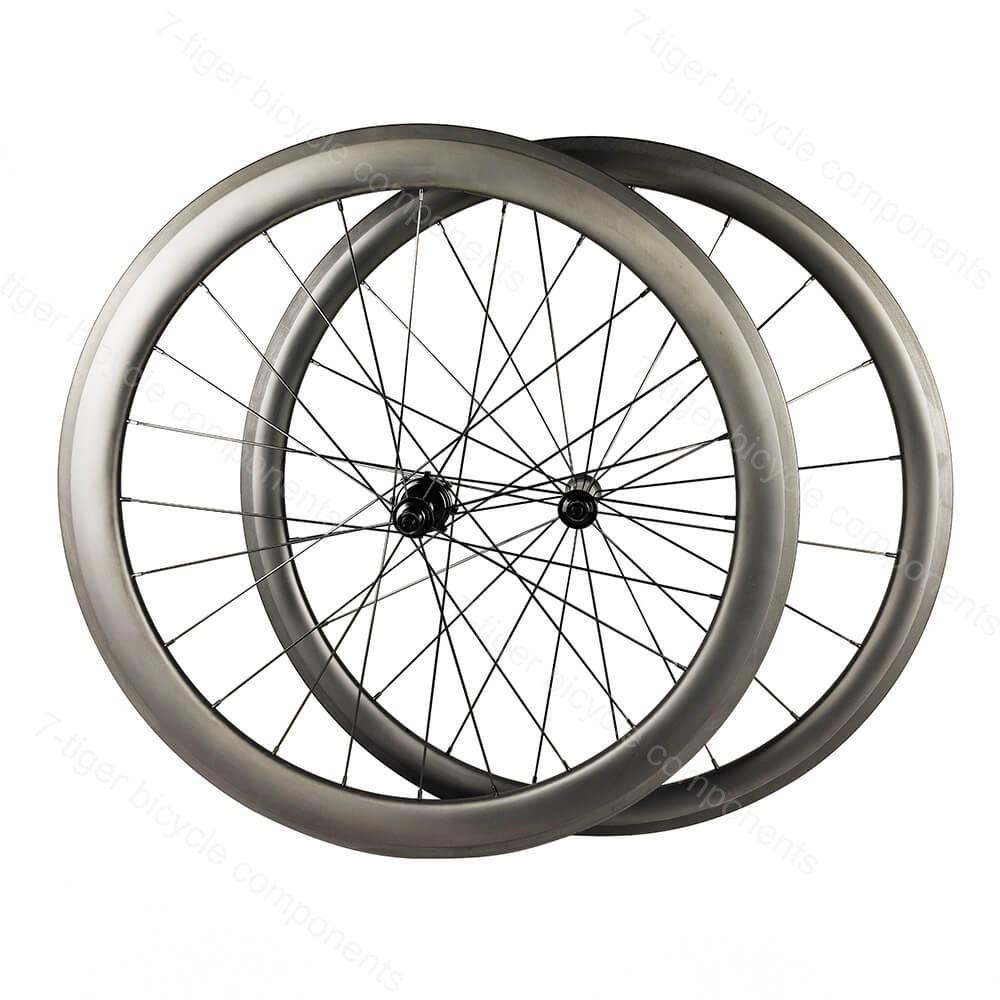

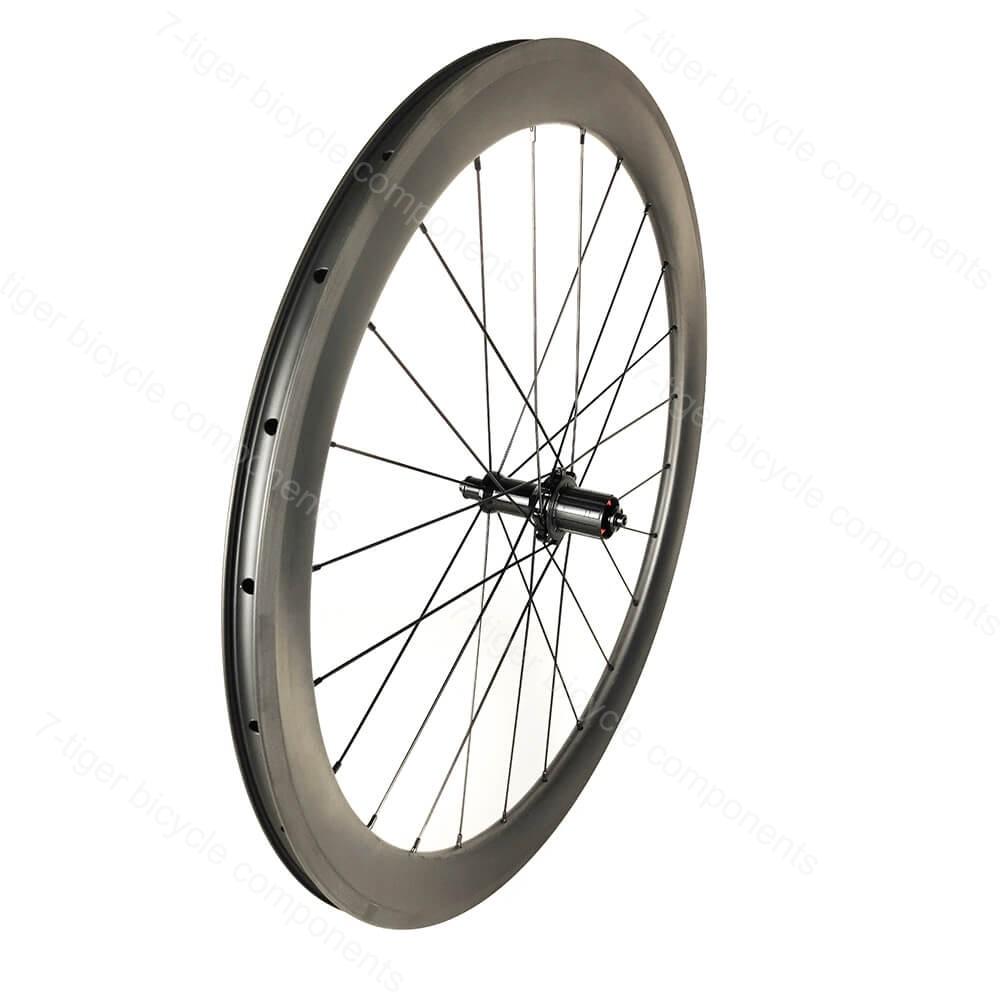

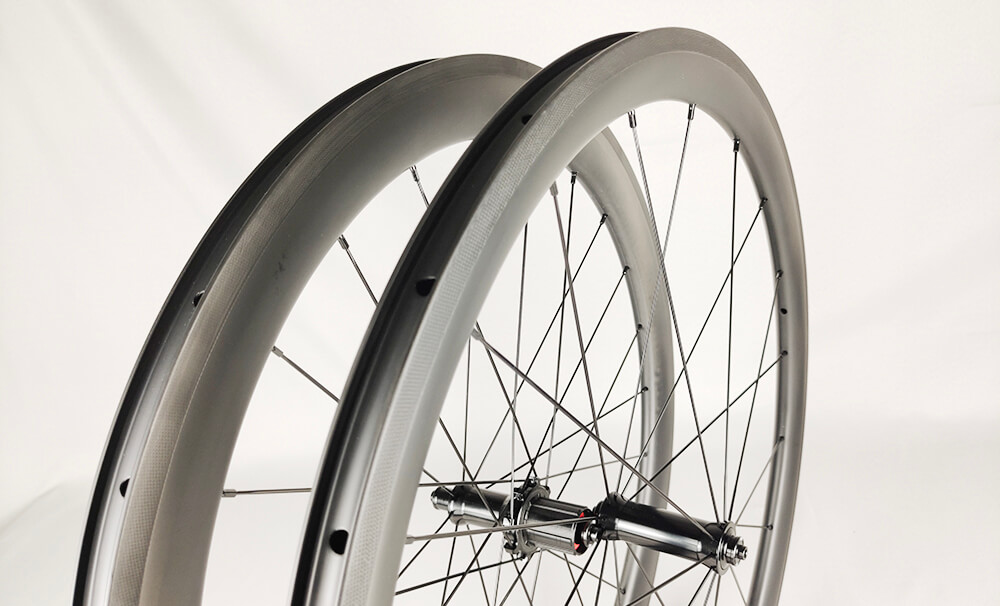

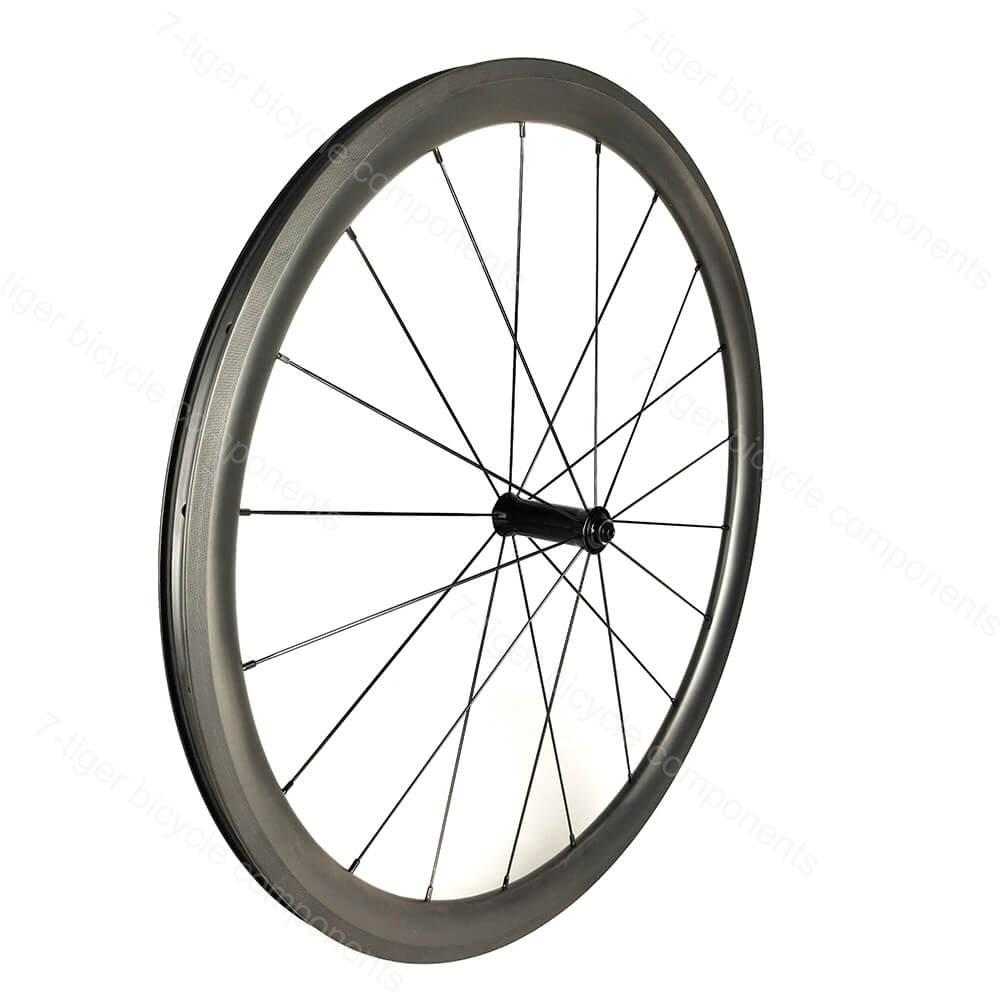

700c Carbon Road Bike Wheelset Rim Brake SR030
Higher radial, lateral and torsional stiffness
Less spoke tension loss over time, Rear wheel 2:1 spokes
Straight-pull asymmetrical design for more even tension on the carbon spokes
Fewer maintenance efforts like re-truing
1. Rims model:
25mm Clincher rims 30/35/38/40/45/50/55/60/88mm
25mm Tubular rims 30/35/38/40/45/50/55/60/88mm
28mm Clincher rims 30/35/40/45/50/55/60mm
28mm Tubular rims 30/35/40/45/50/55/60mm
2. Rim weight:
25mm carbon v brake rims
| 25mm Clincher | 25mm Tubular | ||
| TRU30S | 360±15g | TRU30T | 285±15g |
| TRU35S | 375±15g | TRU35T | 300±15g |
| TRU38S | 385±15g | TRU38T | 305±15g |
| TRU40S | 395±15g | TRU40T | 315±15g |
| TRU45S | 415±15g | TRU45T | 335±15g |
| TRU50S | 430±15g | TRU50T | 350±15g |
| TRU55S | 460±15g | TRU55T | 405±15g |
| TRU60S | 480±15g | TRU60T | 420±15g |
| TRU88S | 650±15g | TRU88T | 480±15g |
28mm wide carbon V-brake rims
| 28mm Clincher | 28mm Tubular | ||
| TRF30S | 370±15g | TRF30T | 310±15g |
| TRF35S | 380±15g | TRF35T | 330±15g |
| TRF40S | 390±15g | TRF40T | 340±15g |
| TRF45S | 400±15g | TRF45T | 350±15g |
| TRF50S | 420±15g | TRF50T | 370±15g |
| TRF55S | 460±15g | TRF55T | 410±15g |
| TRF60S | 490±15g | TRF60T | 430±15g |
3. Bicycle rims weave:

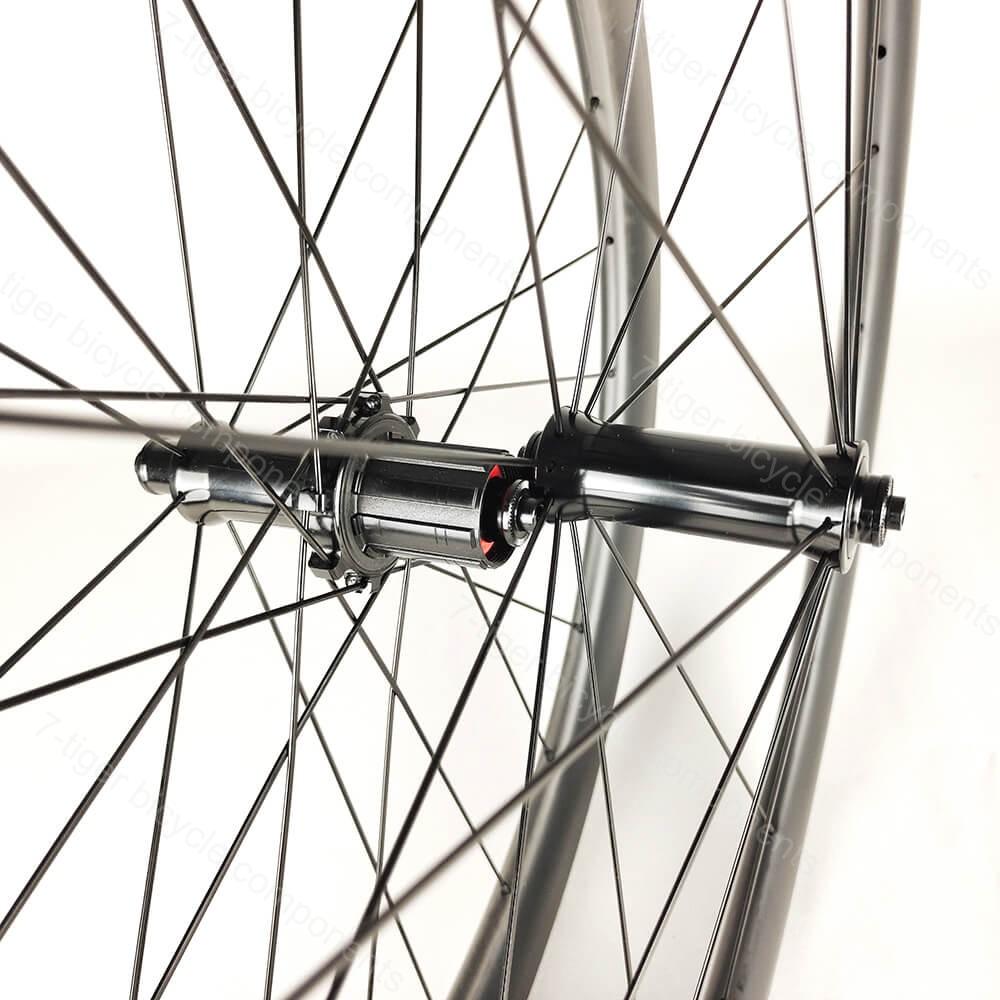

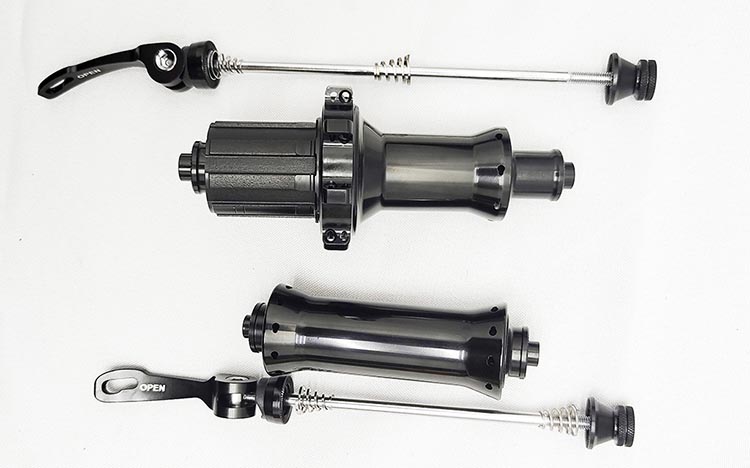

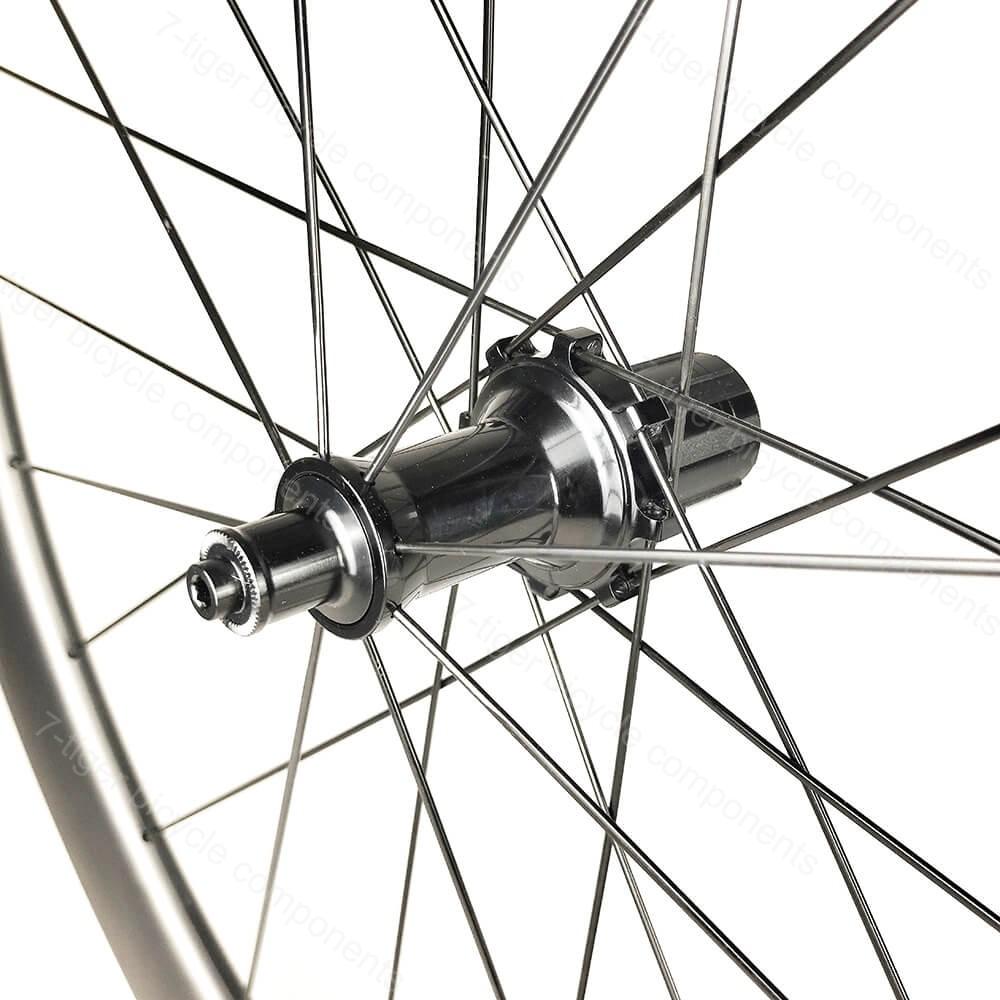

4. Hub:
Straight pull road bicycle rim brake hub
130 x 5mm rear, 100 x 5mm front
6 pawls
XDR 12s, Shimano 11s,
20-24 spoke holes
300 grams shimano 11s
5. Spokes:
Pillar 1420 / CN424/ Sapim cx-ray
6. Nipples:
Black brass prolock nipples
7. Wheelset weight:
| 25mm Clincher | 25mm Tubular | ||
| TRU30S | 1262±5% | TRU30T | 1124±5% |
| TRU35S | 1292±5% | TRU35T | 1142±5% |
| TRU38S | 1312±5% | TRU38T | 1152±5% |
| TRU40S | 1332±5% | TRU40T | 1172±5% |
| TRU45S | 1350±5% | TRU45T | 1190±5% |
| TRU50S | 1370±5% | TRU50T | 1220±5% |
| TRU55S | 1440±5% | TRU55T | 1330±5% |
| TRU60S | 1480±5% | TRU60T | 1360±5% |
| TRU88S | 1820±5% | TRU88T | 1480±5% |
| 28mm Clincher | 28mm Tubular | ||
| TRF30S | 1282±5% | TRF30T | 1162±5% |
| TRF35S | 1300±5% | TRF35T | 1200±5% |
| TRF40S | 1322±5% | TRF40T | 1222±5% |
| TRF45S | 1320±5% | TRF45T | 1220±5% |
| TRF50S | 1360±5% | TRF50T | 1260±5% |
| TRF55S | 1440±5% | TRF55T | 1340±5% |
| TRF60S | 1500±5% | TRF60T | 1380±5% |
8. Rider max weight:
100kgs
9.Wheel Accuracy:
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
10. Warranty:
2 years in normal used
11. View all the catalogue
