DT Swiss 240 road disc brake hub
30/35/38/40/45/50/55/60 disc brake carbon rims
Pillar 1420 spokes
Sapim cx-ray
CN424

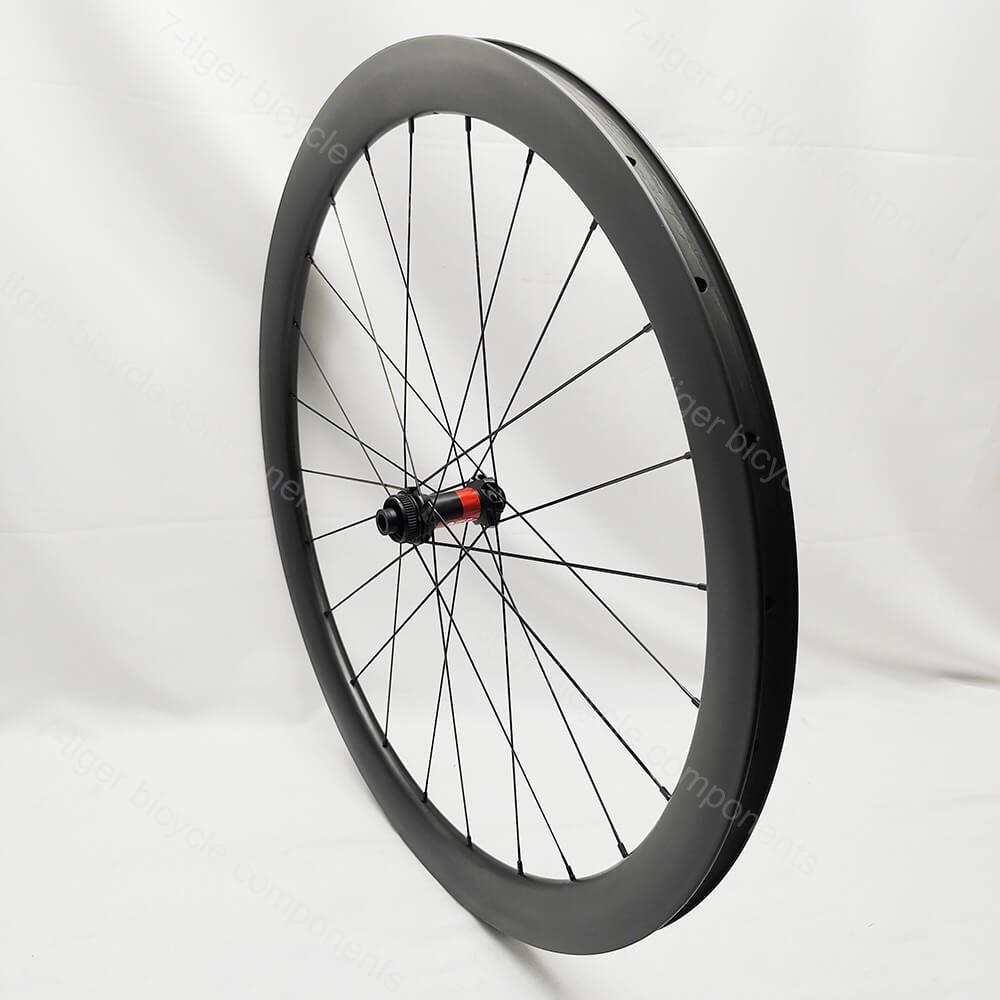

700c Carbon Road Bike Wheelset Disc Brake Dt swiss 240
Higher radial, lateral and torsional stiffness
Less spoke tension loss over time
Longer durability
Fewer maintenance efforts like re-truing
1. Rims model:
25mm Clincher rims 30/35/38/40/45/50/55/60/88mm
25mm Tubular rims 30/35/38/40/45/50/55/60/88mm
28mm Clincher rims 30/35/40/45/50/55/60mm
28mm Tubular rims 30/35/40/45/50/55/60mm
2. Rim weight:
25mm carbon V-brake rims
| 25mm Clincher | 25mm Tubular | ||
| TRU30S | 360±15g | TRU30T | 285±15g |
| TRU35S | 375±15g | TRU35T | 300±15g |
| TRU38S | 385±15g | TRU38T | 305±15g |
| TRU40S | 395±15g | TRU40T | 315±15g |
| TRU45S | 415±15g | TRU45T | 335±15g |
| TRU50S | 430±15g | TRU50T | 350±15g |
| TRU55S | 460±15g | TRU55T | 405±15g |
| TRU60S | 480±15g | TRU60T | 420±15g |
28mm wide carbon V-brake rims
| 28mm Clincher | 28mm Tubular | ||
| TRF30S | 370±15g | TRF30T | 310±15g |
| TRF35S | 380±15g | TRF35T | 330±15g |
| TRF40S | 390±15g | TRF40T | 340±15g |
| TRF45S | 400±15g | TRF45T | 350±15g |
| TRF50S | 420±15g | TRF50T | 370±15g |
| TRF55S | 460±15g | TRF55T | 410±15g |
| TRF60S | 490±15g | TRF60T | 430±15g |
3. Bicycle rims weave:
4. Hub:
Straight pull disc road bicycle hub
142 x 12mm rear, 100 x 12mm front
Rachet EXP
XDR 12s, Shimano 11s,
24-24 spoke holes
354 grams shimano 11s
5. Spokes:
Pillar 1420 / CN424/ Sapim cx-ray
6. Nipples:
Black brass prolock nipples
7. Wheelset weight:
| 25mm Clincher | 25mm Tubular | ||
| TRU30S | 1338±5% | TRU30T | 1188±5% |
| TRU35S | 1368±5% | TRU35T | 1218±5% |
| TRU38S | 1388±5% | TRU38T | 1228±5% |
| TRU40S | 1408±5% | TRU40T | 1248±5% |
| TRU45S | 1424±5% | TRU45T | 1264±5% |
| TRU50S | 1454±5% | TRU50T | 1294±5% |
| TRU55S | 1514±5% | TRU55T | 1404±5% |
| TRU60S | 1554±5% | TRU60T | 1434±5% |
| 28mm Clincher | 28mm Tubular | ||
| TRF30S | 1358±5% | TRF30T | 1238±5% |
| TRF35S | 1378±5% | TRF35T | 1278±5% |
| TRF40S | 1398±5% | TRF40T | 1298±5% |
| TRF45S | 1394±5% | TRF45T | 1294±5% |
| TRF50S | 1434±5% | TRF50T | 1334±5% |
| TRF55S | 1514±5% | TRF55T | 1414±5% |
| TRF60S | 1574±5% | TRF60T | 1454±5% |
8. Rider max weight:
100kgs
9.Wheel Accuracy:
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
10. Warranty:
2 years in normal used
